IAS400 - Air-Sampling Smoke Detection System

Air Sampling Smoke Detection


Security Systems
Fire Control Systems

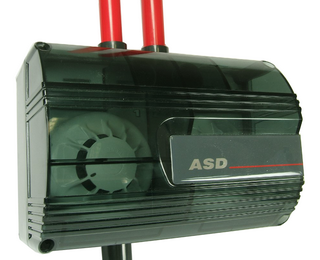

The ICAM IAS800 Air Sampling Smoke Detection System provides a flexible solution to meet the unique needs of numerous applications including industrial spaces such as cable tunnels, tamper proof and unobtrusive requirements for special accommodation, or can simply be used to replace spot (point) detectors in office environments.

The IAS800 system actively draws air from the protected area through sampling holes in a pipe network. Sampled air is then filtered before being analyzed by upto two FC400 Series detectors.

The IAS800 system is available in three configurations:
1. IAS800 twin inlet pipe configuration which can be fitted with two detectors for monitoring one or two pipe runs.

2. IAS801 single inlet pipe configuration which can be fitted with one detector.

3. IAS802 twin inlet pipe configuration which can be fitted with two detectors for monitoring one or two separate pipe runs with independant fault outputs.

The system utilises a high performance aspirator and software configurable flow monitoring circuitry. The air flow level is displayed on a ten element bar graph that can be adjusted for high and low flow thresholds, and flow failure is reported as a device fault.

FEATURES:

  • Powerful fan
  • Upto two x 50m pipe runs
  • Pipes can be individually monitored for air flow with LED bar graph
  • FireClass Digital Loop and 24 VDC connections
  • Fault monitored via the FireClas digital Loop
  • IP65 enclosure
  • Field serviceable air filters
  • Uses standard 25mm Vesda pipe & fittings


  • TECHNICAL SPECIFICATION:

  • Supply Voltage 18 to 30Vdc
  • Current Consumption 300mA
  • Dimensions 259w x 184h x 166d mm
  • Weight 2.77 Kg
  • Operating Temp -10 to +55°C (with detectors)
  • Humidity 10 to 90% RH NonCondensing
  • Sampling Pipes 25 mm dia, 50m per inlet


  • PRODUCT CODE:

  • Aspirated Smoke Dual Detector common fault monitor ICAM IAS800
  • Aspirated Smoke Single Detector common fault monitor ICAM IAS801
  • Aspirated Smoke Dual Detector dual fault monitor ICAM IAS802
  • ICAM Course Filter (PK10) 516.016.303
